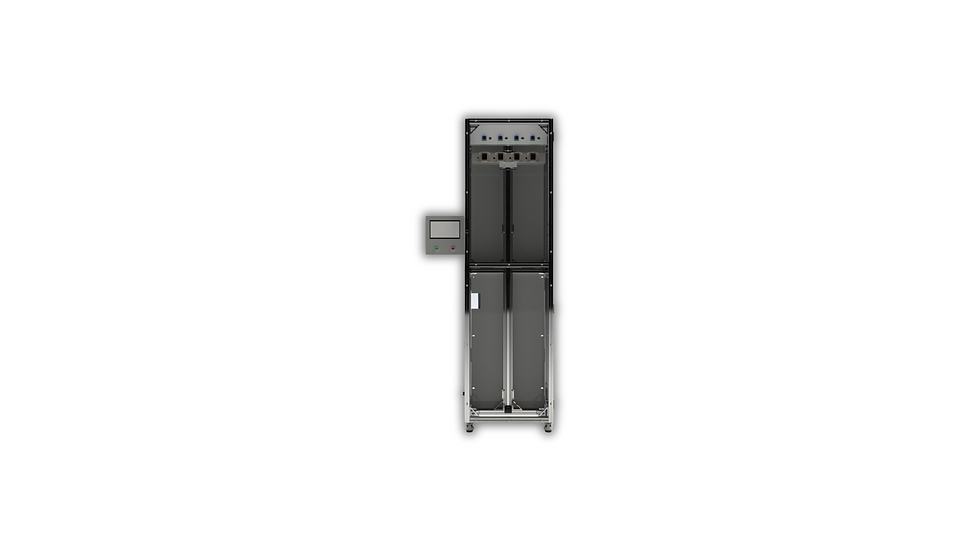

1-UP Reflow System (Compressed-Air less)
No Compressed Air. Faster Reflow. Built to Scale.
The 1-UP Reflow delivers high-precision hot-air reflow without external compressed air—cutting costs, reducing complexity, and accelerating cycle times. Engineered for catheter manufacturing, it produces uniform, repeatable bonds on braided sub-assemblies and liners.
This isn’t a lab tool. The 1-UP shares the same platform as our 4-UP and 8-UP systems, so processes developed here scale directly to production. Process parameters transfer directly—no rework, no surprises.
Develop fast. Validate once. Scale without risk.
360° Precision Hot-Air Nozzle for uniform, circumferential reflow
Up to 185 cm Linear Travel for long catheter assemblies
10″ High-Definition Touchscreen HMI for intuitive operation
Fully Programmable Reflow Control including length (cm), speed (mm/sec), and dwell time (sec)
Recipe-Based Temperature & Airflow Synchronization for repeatable results
Process Window Monitoring with Automatic Alarms to flag temperature deviations outside defined limits
Up to 50 Programmable Process Zones with independent length and speed control
Unlimited Recipe Storage for rapid changeovers
Electric Catheter Clamps supporting OD sizes from 0.050″ to 0.45″
